Understanding Pressure Gauges and Testing Equipment for Irrigation Systems

Introduction

Pressure is the lifeblood of any irrigation system. Too little and your drippers won't perform; too much and you risk damaging components, causing misting, or blowing joints. Yet pressure monitoring is one of the most overlooked aspects of irrigation system management.

In this guide, we explain the different types of pressure gauges and testing equipment available, how to use them, and where to position them in your system for maximum benefit.

Why Pressure Monitoring Matters

Irrigation systems are designed to operate within specific pressure ranges. Most drip irrigation components are rated between 0.5 and 4 bar, with an optimal operating range of 1–3 bar for most drippers. Operating outside these ranges causes:

• Low pressure: Uneven water distribution, under-irrigation, and poor crop performance
• High pressure: Misting from drippers, blown joints, damaged drip tape, and wasted water
• Pressure fluctuations: Inconsistent application rates and difficulty diagnosing faults

Regular pressure monitoring allows you to catch these issues early, before they affect your crop or cause expensive damage.

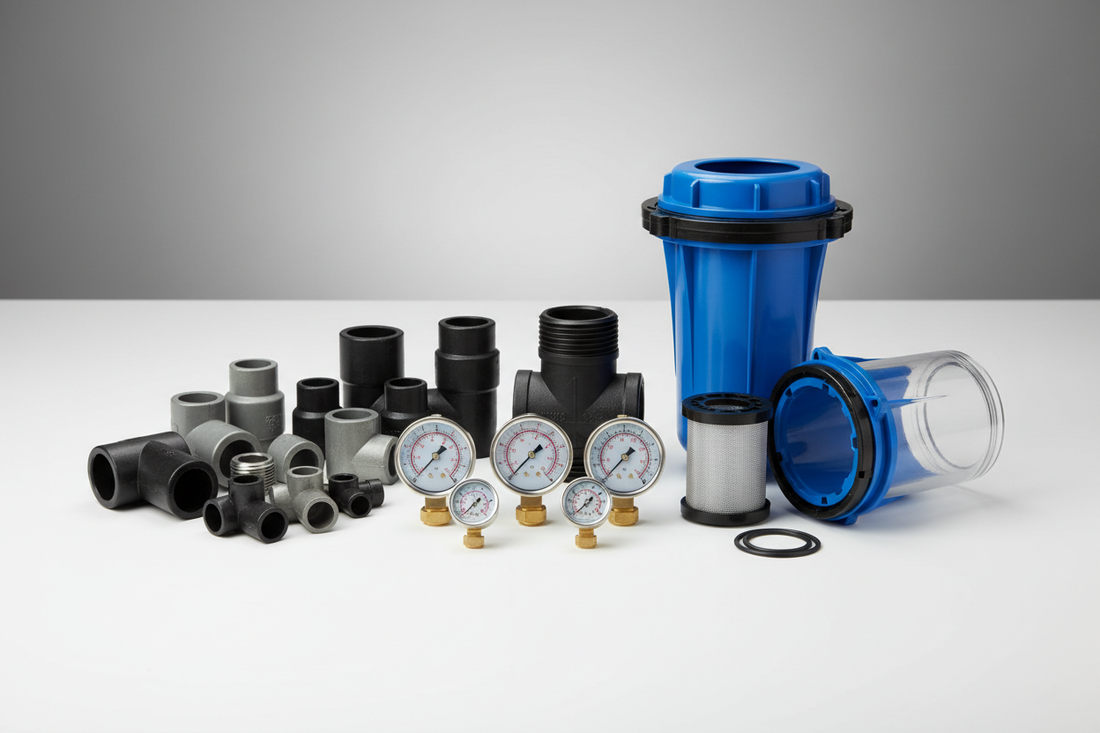

Types of Pressure Gauges

Glycerine-Filled Pressure Gauges

The most common type used in irrigation. The glycerine filling dampens needle movement, making readings easier to take on systems with pulsing pumps or fluctuating pressure. Available in a range of pressure scales (typically 0–4 bar, 0–6 bar, or 0–10 bar) and connection sizes.

Best for: Permanent installation at pump outlets, filter heads, and zone control valves.

Dry Pressure Gauges

Lower cost than glycerine-filled gauges, but the needle can flutter on pulsing systems, making readings harder to interpret. Suitable for stable pressure systems or temporary testing.

Digital Pressure Gauges

Offer precise readings and can include data logging, min/max recording, and alarm functions. Useful for detailed system analysis and troubleshooting.

Differential Pressure Gauges

Measure the pressure drop across a filter, allowing you to determine when the filter needs cleaning. When the differential pressure exceeds a set threshold (typically 0.3–0.5 bar), it's time to flush or clean the filter element.

Browse our full range of Pressure Gauges to find the right gauge for your application.

Where to Install Pressure Gauges

For a well-monitored system, we recommend installing gauges at the following points:

1. Pump outlet — to monitor source pressure and detect pump performance issues
2. Filter inlet and outlet — to monitor pressure drop across the filter (indicates when cleaning is needed)
3. Zone control valve outlets — to confirm each zone is receiving the correct operating pressure
4. End of lateral lines — to check for pressure loss along the lateral and confirm drippers are within their operating range

Pressure Testing Your System

Pressure testing should be carried out at the start of each season and after any significant repair or modification. Here's a simple procedure:

1. Cap all lateral ends and close all zone valves
2. Pressurise the system to 1.5x normal operating pressure (do not exceed component pressure ratings)
3. Hold pressure for a period and monitor for any drop
4. Walk the system and check all joints, connectors, and valves for leaks
5. Open each zone in turn and record the pressure at the zone valve outlet
6. Compare readings against your system design specifications

Common Pressure Problems and Solutions

• Pressure lower than expected: Check for leaks, blocked filters, or a pump that needs servicing. Also check that your pipe diameter is adequate for the flow rate.
• Pressure higher than expected: Check pressure regulators — they may have failed or be set incorrectly.
• Pressure varies between zones: Check for partially closed valves, blocked laterals, or differences in elevation between zones.
• Pressure drops during irrigation: May indicate a pump capacity issue or a significant leak developing in the system.

Pressure Vessels and Surge Protection

On systems with frequent pump starts and stops, water hammer can cause significant pressure spikes that damage components. Pressure vessels (also known as expansion vessels or bladder tanks) absorb these pressure surges and protect your system.

Conclusion

Investing in the right pressure monitoring equipment is one of the most cost-effective things you can do to protect your irrigation system and ensure consistent crop performance. A few well-placed gauges and a simple testing routine can save you thousands in repairs and lost production.

Browse our range of Pressure Gauges and Pressure Vessels online, or contact the IrriSmart team for advice on the right equipment for your system.
