Filtration Methods for Drip Irrigation: Choosing the Right Filter for Your Water Source

Introduction

Ask any experienced irrigation engineer what causes the most drip system failures and the answer is almost always the same: blocked drippers. And the root cause of blocked drippers is almost always inadequate filtration.

Choosing the right filter for your water source is one of the most important decisions in drip irrigation system design. Get it right and your drippers will run cleanly for years. Get it wrong and you'll spend the season unblocking emitters, replacing drip tape, and losing crop to uneven water distribution.

This guide covers the main filtration methods used in drip irrigation and explains which is best suited to different water sources.

Why Filtration Is Non-Negotiable in Drip Irrigation

Drip emitters have very small flow paths — typically 0.5mm to 1.5mm in diameter. Even small particles of sand, organic matter, algae, or mineral deposits can block them. Unlike sprinkler systems, where a blocked nozzle is immediately obvious, a blocked dripper can go unnoticed for days, silently stressing or killing plants in that zone.

The level of filtration required depends on two factors: the dripper's flow path size and the quality of your water source. Most dripper manufacturers specify a minimum filtration level, typically expressed as mesh size (e.g. 120 mesh) or micron rating (e.g. 130 micron).

Understanding Water Sources and Their Filtration Challenges

Mains Water

Generally the cleanest source, but not without risk. Mains water can contain fine sediment, pipe scale, and occasionally algae if storage tanks are involved. A screen or disc filter is usually sufficient.

Borehole Water

Often high in dissolved minerals, particularly iron, manganese, and calcium. These can precipitate out of solution and form deposits inside drippers — a problem known as chemical clogging. Sand media filtration combined with chemical treatment (acidification or chlorination) is typically required.

River and Surface Water

The most challenging source. Surface water contains suspended solids, algae, organic matter, and biological contaminants that vary significantly with season and weather. A multi-stage filtration approach is essential, often starting with a settling tank or hydrocyclone, followed by sand media filtration and a secondary screen or disc filter.

Reservoir and Pond Water

Similar challenges to surface water, with the added risk of algae blooms in warm weather. Algae can rapidly block filters and drippers. Regular filter flushing and periodic chlorination are important management tools.

Recycled or Treated Wastewater

Increasingly used in water-scarce regions and controlled environments. Requires careful filtration and disinfection to manage biological and chemical contamination. Consult a specialist before designing a system around this source.

Filtration Methods Explained

Screen Filters

The simplest and most common type. Water passes through a cylindrical mesh screen that traps particles larger than the mesh opening. Available in a wide range of mesh sizes, typically 105 to 200 mesh (120 to 75 micron).

200 Micron for micro sprinklers and filed sprinklers NDJ Micro Sprinklers – IrriSmart

• Pros: Low cost, simple to clean, compact
• Cons: Not suitable for high organic loads — organic matter can blind the screen quickly and is difficult to flush off
• Best for: Mains water, clean borehole water, as a secondary filter after coarser pre-filtration

Disc Filters

Use a stack of grooved plastic discs compressed together to form a filtration matrix. Water passes through the grooves, trapping particles at the disc intersections. Disc filters handle organic matter better than screen filters because the grooves are less prone to blinding.

• Pros: Better performance with organic matter than screen filters, easy to clean, available in automatic self-cleaning versions
• Cons: Higher cost than screen filters, more complex to service
• Best for: Surface water with moderate organic loads, reservoir water, secondary filtration after sand media

Our range of Amiad Filters includes both screen and disc filter options, including automatic self-cleaning models that flush without interrupting irrigation.

Sand Media Filters

Use a bed of graded silica sand or crushed granite to filter water as it passes through. Particles are trapped within the sand bed rather than on a surface, giving sand media filters a much higher dirt-holding capacity than screen or disc filters.

• Pros: Excellent for high organic loads and turbid water, high dirt-holding capacity, can handle algae and biological matter
• Cons: Larger footprint, higher cost, require backwashing (which uses water), typically installed in pairs or sets to allow continuous operation during backwash
• Best for: Surface water, river water, reservoir water with high organic or sediment loads

Sand media filters are typically installed as the primary filtration stage, with a disc or screen filter downstream as a secondary safety filter.

Hydrocyclone (Sand Separator)

Not a filter in the traditional sense, but an important pre-treatment device for water with high sand or grit content. Water enters the hydrocyclone tangentially, creating a centrifugal effect that spins heavy particles to the outside and down into a collection chamber, while clean water exits from the top.

• Pros: No filter element to clean or replace, handles very high sand loads, low maintenance
• Cons: Only removes heavy particles (sand, grit) — does not remove fine particles, organic matter, or algae. Must always be followed by a screen, disc, or media filter.
• Best for: Borehole water with high sand content, river intakes with heavy sediment loads

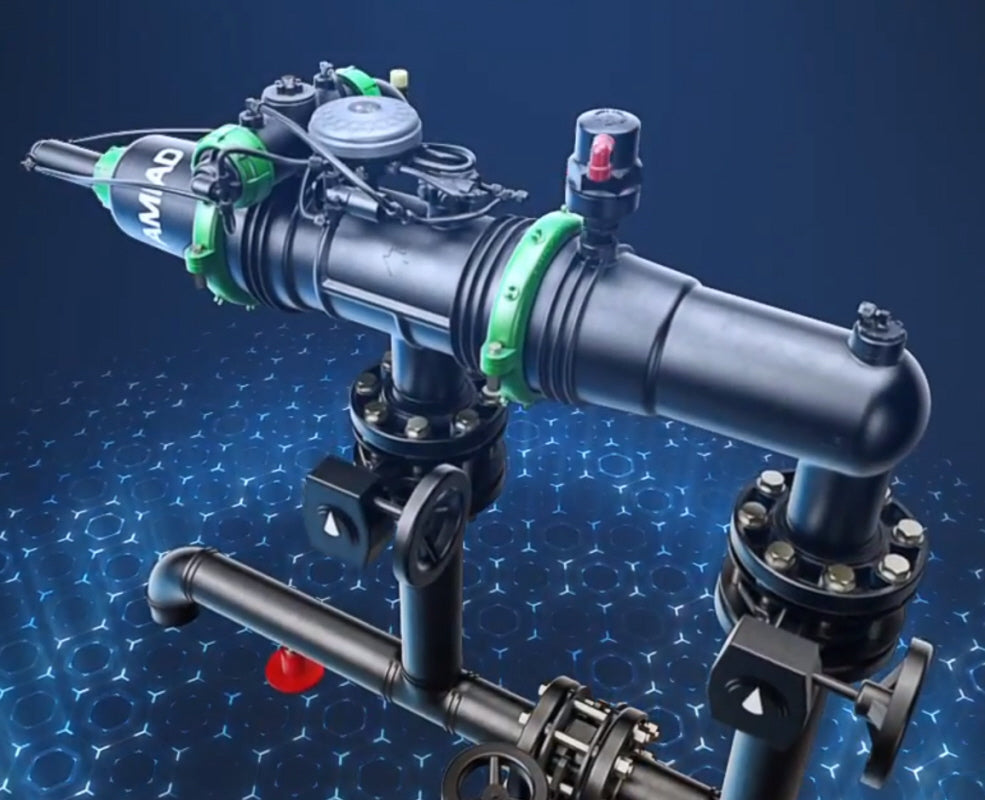

Automatic Self-Cleaning Filters

Available in both screen and disc configurations, automatic self-cleaning filters use a motorised flush mechanism triggered either by a timer or by differential pressure across the filter element. When the pressure drop reaches a set threshold (indicating the filter is becoming blocked), the filter automatically flushes without interrupting water flow to the irrigation system.

• Pros: Minimal operator intervention, consistent filtration performance, ideal for remote or automated systems
• Cons: Higher upfront cost, requires pressure & power supply for the flush mechanism
• Best for: Large systems, automated systems, locations where regular manual cleaning is impractical

Recommended Filtration by Water Source

• Mains water: Screen or disc filter (120–200 mesh)
• Clean borehole water: Screen or disc filter; add chemical dosing if iron or calcium levels are high
• Borehole with high sand content: Hydrocyclone + screen or disc filter
• Reservoir or pond water: Sand media filter + disc filter; consider automatic self-cleaning
• River or surface water: Settling tank or hydrocyclone + sand media filter + disc or screen filter
• All systems should include Main filtration and a minimum second filtration.

Maintenance: The Key to Long-Term Performance

Even the best filter will fail if it isn't maintained. Key maintenance tasks include:

• Monitor differential pressure across the filter daily during peak season — a rising pressure drop indicates the filter needs cleaning
• Clean or backwash filters at regular intervals, even if the pressure drop hasn't reached the trigger threshold
• Inspect filter elements for damage, wear, or bypass at the start and end of each season
• Flush lateral lines at the end of each season to remove any debris that has passed through the filter
• Use pressure gauges on both sides of the filter to monitor differential pressure accurately

Conclusion

The right filtration system is the foundation of a reliable drip irrigation system. By matching your filter type to your water source and maintaining it properly, you'll protect your drippers, reduce downtime, and get the most from your irrigation investment.

At IrriSmart, we stock a comprehensive range of filtration solutions for every water source and system size. Browse our Amiad Filters range online or contact our team for expert advice on designing the right filtration system for your operation.
